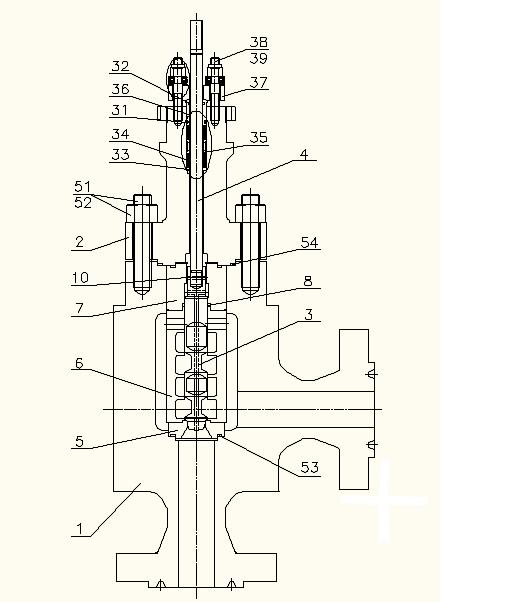

YD112V high pressure differential anti-dust angle valve        download

          High pressure media of Oil refining and coal-chemical contains dust.
          Domestic customer apply general angle type multi-segment or angle type labyrinth valve to meet high pressure differential. But during production, block up and jam happened, even can stop the production. YD112V is specially developed to meet the requirement.By improving design for internal structure of general angle type multi-segment valve, dust can smoothly flow out of valve alone channel section. One jacket replaces two jackets to increase internal channel area. Modify regulation plug on the top of plug to increase valve opening on case of small flow control.
         YD112V meet the special working environment requirement and decrease maintenance cost. It had certified for invention patent of China. To contact us for detail please!
