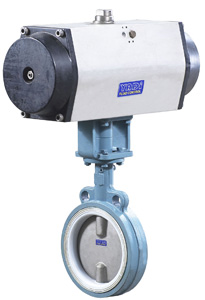

YD300F high performance PTFE lined butterfly valve, which is specially used in corrosive operation condition of chemical medium.

Specifications:

  Body type   YD300F
  Body size   2"~24"(50A~600A)
  Body rating   ANSI Class150,PN1.6MPa
  Fluid temp.   -20~+150℃
  Connections   Wafer
  Body materials   FCD450/PTFE, WCB/PTFE, CF8/PTFE, CF8M/PTFE,etc
  Disc materials   WCB/PTFE, CF8/PTFE, CF8M/PTFE
  Stem materials   304SS, 316SS,630
  Seat materials   F46,PTFE
  Flow characteristics   Approximate EQ%(Inherent Characteristic)
  Actuator   PX00RA、PA00RA Pneumatic Cylinder Actuator
  EK00RA、EQ00RA Solid State Electronic Actuator
