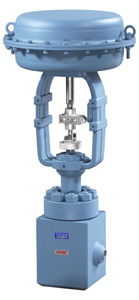

Velocity control valve is in severe services of high temperature and high differential pressure. It can reduce noise to compressible fluid(gas、steam)and prevent cavitation to non-compressible fluid(liquid).This series is multi-advantageous in that its improved performance and durability allow maintenance cost reduction and system simplification. From YD100C、YD100V、YD101V、YD102V, depending on the fluid condition, most suitable model can be selected comparing functions and prices.

Specifications:

    Body type      YD100C YD100V YD101V
    Body size      1"~20"(25A~500A)
    Body rating      ANSI Class 150~2500,PN1.0MPa~PN42MPa
    Fluid temp.       -196~+538℃(Can be up to 565℃; under high pressure)
    Connections      Flange(RF、MFM、RJ),Weld ends (SW :2" and under, BW :3" and over)
    Body materials      WCB(A105)、WC6(F11)、WC9(F22)、CF8(304SS)、CF8M(316SS),etc.
    Trim materials      410SS/HT、304SS、316SS、17-4PH,etc.
    Rangeability      20:1~50:1
    Flow characteristics      Equal percentage、Linear、 On-off
    Leakage      Metal seat:ANSI Class Ⅳ,Ⅴor MSS-SP-61;
     Soft seat:ANSI Class Ⅵ
    Actuator      DY00LA Pneumatic Diaphragm Actuator
     PY00LA Pneumatic Cylinder Actuator
     EK00LA、EQ00LA Solid State Electronic Actuator
