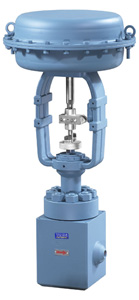

Velocity control valve is in severe services of high temperature and high differential pressure. It can reduce noise to compressible fluid(gas、steam)and prevent cavitation to non-compressible fluid(liquid).This series is multi-advantageous in that its improved performance and durability allow maintenance cost reduction and system simplification. From YD100C、YD100V、YD101V、YD102V, depending on the fluid condition, most suitable model can be selected comparing functions and prices.


   Body type     YD100C YD100V YD101V
   Body size     1"~20"(25A~500A)
   Body rating     ANSI Class 150~2500,PN1.0MPa~PN42MPa
   Fluid temp.     -196~+538℃(Can be up to 565℃; under high pressure)
   Connections     Flange(RF、MFM、RJ),Weld ends (SW :2" and under, BW :3" and over)
   Body materials     WCB(A105)、WC6(F11)、WC9(F22)、CF8(304SS)、CF8M(316SS),etc.
   Trim materials     410SS/HT、304SS、316SS、17-4PH,etc.
   Rangeability     20:1~50:1
   Flow characteristics     Equal percentage、Linear、 On-off
   Leakage     Metal seat:ANSI Class Ⅳ,Ⅴor MSS-SP-61;
    Soft seat:ANSI Class Ⅵ
   Actuator     DY00LA Pneumatic Diaphragm Actuator
    PY00LA Pneumatic Cylinder Actuator
    EK00LA、EQ00LA Solid State Electronic Actuator
