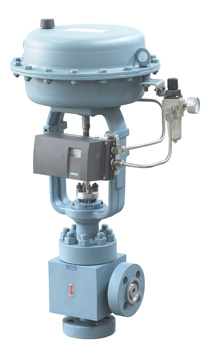

    Location >> Home >> Product Center >> YD1000 Globe Valves Series >> YD111V Angle Type Labyrinth Velocity Control Valves >> YD111V Angle Type Labyrinth Velocity Control Valves


With this series, slurry-containing fluids, high viscosity fluids, flashing fluids or ultra-high differential pressure fluids can be handled easily. Depending on the fluid condition, most suitable model can be selected comparing functions and prices.


    Body type     YD110S、YD110C、YD110V、YD111V、YD112V
    Body size     1/2"~12"(15A~300A)
    Body rating     ANSI Class 150~2500,PN1.0MPa~PN42MPa
    Fluid temp.     -196~+538℃(Can be up to 565℃; under high pressure)
    Connections     Flange(RF、MFM、RJ),Weld ends (SW :2" and under, BW :3" and over)
    Body materials     A105、F11、F22、304SS、316SS,etc.
    Trim materials     410SS/HT、304SS、316SS、316SS +Stellite、17-4PH,etc.
    Rangeability     50:1
    Flow characteristics     Equal percentage、Linear
    Leakage     ANSI Class Ⅳ,V
    Actuator     DY00LA Pneumatic Diaphragm Actuator
    PY00LA Pneumatic Cylinder Actuator
    EK00LA、EQ00LA Solid State Electronic Actuator
