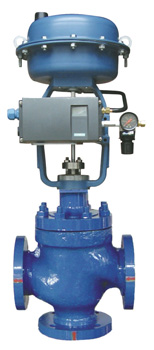

3-way Diverting Control Valves can divide the flow into two directions and 3-way Mixing Control Valves can converge two flows into one.

Specifications:

Body type YD101T、YD102T
Body size 1"~16"(25A~400A)
Body rating ANSIClass150~600,PN1.0MPa~PN10MPa
Fluid temp. -196~+538℃
Connections Flange(RF、MFM、RJ),Weld ends (SW :2" and under, BW :3" and over)
Body materials WCB、WC6、CF8、CF8M,etc.
Trim materials 410SS/HT、304SS、316SS、316SS+Stellite、17-4PH,etc.
Rangeability 30:1
Flow characteristics Equal percentage、Linear
Leakage ANSI Class Ⅳ
Actuator DY00LA Pneumatic Diaphragm Actuator
PY00LA Pneumatic Cylinder Actuator
EK00LA、EQ00LA Solid State Electronic Actuator
