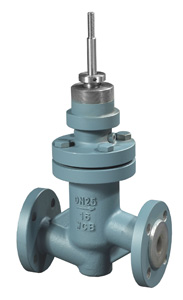

YD100F series provides globe type control valves for controlling corrosive and/or poisonous fluids. Body parts contacting with fluid are made of pure teflon and bonnet parts are completely sealed by pure teflon bellows. Body is coverd by cast iron or stainless body cover which is resistant to shock from outside.
Specifications:
Body type |
YD100F |
Body size |
1/2"~6"(15A~150A) |
Body rating |
ANSI Class150,PN1.0 MPa ~PN1.6MPa |
Fluid temp. |
0~+150℃ |
Connections |
Flange(RF) |
Body materials |
FCD/F46、PTFE,WCB/F46、PTFE,CF8/F46、PTFE,etc. |
Trim materials |
F46、PTFE,etc. |
Rangeability |
30:1~50:1 |
Flow characteristics |
Equal percentage、Linear |
Leakage |
ANSI Class Ⅵ |
Actuator |
DY00LA Pneumatic Diaphragm Actuator |
|
EK00LA、EQ00LA Solid State Electronic Actuator |
|
|
