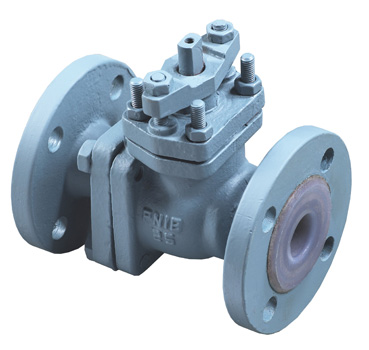

YD200F series high performance PFA lined ball valve, which is especially suited to tight-closing of highest corrosive chemical medium.

Specifications:

  Body type   YD200F
  Body size   1/2"~10"(15A~150A)
  Body rating   ANSI Class150,PN1.6 MPa
  Fluid temp.   -30~+150℃
  Connections   Flange(RF)
  Body materials   WCB/CF8/CF8M/CF3/CF3M F46 lined or PTFE
  Ball materials   WCB/CF8/CF8M/CF3/CF3M F46 lined or PTFE
  Seal ring materials   F46、PTFE
  Leakage   Tight shut off
  Actuator   PX00RA、PA00RA Pneumatic Cylinder Actuator
  EK00RA、EQ00RA Solid State Electronic Actuator
