    Location >> Home >> Product Center >> YD2000 Ball Valves Series >> YD230T 3-way Ball Valves >> YD230T 3-way Ball Valves

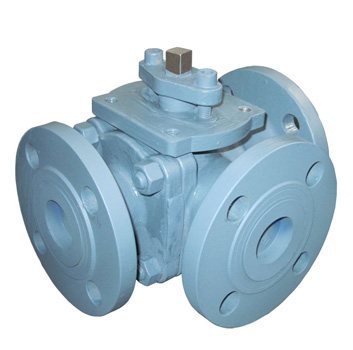

In control of the media in the pipeline,YD230T Series 3-Way Ball Valves(T-type) mainly used in mixing and diverting application.YD230L Series 3-Way Ball Valves(L-type) mainly used in the distribution application. All have integrated structure,4-valve seat sealing surface types and high reliability, long life. By changing the relative angle of the ball and the channel can be achieved three different combinations of fluid pipeline control, it is widely used in liquid, steam, and other fluids distribution and control.


  Body type   YD230T YD230L
  Body size   1/2"~10"(15A~150A)
  Body rating   ANSI Class150~ Class300,PN1.6 MPa~ PN2.5 MPa
  Fluid temp.   -29~+300℃
  Connections   Flange(RF)
  Body materials   WCB/CF8/CF8M/CF3/CF3M
  Ball materials   WCB、CF8、CF8M、CF3、CF3M
  Seal ring materials   PTFE,PPL
  Leakage   Tight shut off
  Actuator   PX00RA、PA00RA Pneumatic Cylinder Actuator
  EK00RA、EQ00RA Solid State Electronic Actuator
