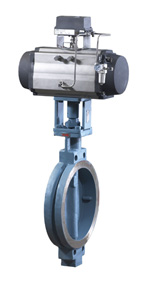

YD300M series double-eccentric butterfly valve with outstanding performance, applies for petrochemical, power, metallurgy, light industry, etc.
Specifications:
Body type |
YD300M |
Body size |
3"~24"(80A~600A) |
Body rating |
ANSI Class150~300,PN1.6 MPa~PN4.0Mpa |
Fluid temp. |
-50~+250℃ |
Connections |
Wafer type,Flanged(RF) |
Body materials |
WCB,CF8,CF8M etc. |
Disc materials |
WCB,CF8,CF8M etc. |
Disc treatment |
Chrome plated |
Rangeability |
60°Opening/25:1,90°Opening/50:1 |
Flow characteristics |
Approximate EQ%(Inherent Characteristic) |
Seal ring type |
TN ,TV ,TS |
Seal ring materials |
R.TFE |
Back ring materials |
NBR ,VITON ,316SS |
Leakage |
ANSI ClassⅥ |
Actuator |
PX00RA、PA00RA Pneumatic Cylinder Actuator |
|
EK00RA、EQ00RA Solid State Electronic Actuator |
|
