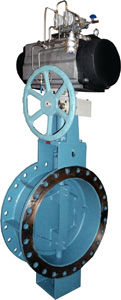

YD310S series body and disc are steel plate welded, with compact structure. It is suited to large size, large flow rate, low differential pressure, low leakage and zero leakage applications.
Specifications:
Body type |
YD310S |
Body size |
16"~104"(400A~2600A) |
Body rating |
ANSI Class125~150,PN0.25MPa~PN1.0Mpa |
Fluid temp. |
-50~+200℃ |
Connections |
Flanged(RF,FF) ,Butt weld,Wafer |
Body materials |
Q235A,304SS,316SS,etc. |
Disc materials |
SS41,304SS,316SS,310SS,etc. |
Rangeability |
30:1 |
Flow characteristics |
Approximate EQ%(Inherent Characteristic) |
Leakage |
ANSI Class Ⅳ~Ⅵ |
Actuator |
PX00RA、PA00RA Pneumatic Cylinder Actuator |
|
EK00RA、EQ00RA Solid State Electronic Actuator |
|
