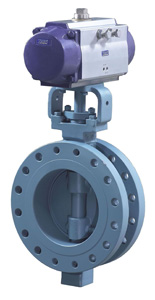

YD300T series three eccentric sealing butterfly valve with advanced design, and with the third eccentric, applies for petrochemical, power, metallurgy, light industry, etc.
Specifications:
Body type |
YD300T |
Body size |
2"~80"(50A~2000A) |
Body rating |
ANSI Class150~1500,PN1.6 MPa~PN25Mpa |
Fluid temp. |
-196~+700℃ |
Connections |
Wafer type,Flanged(RF) |
Body materials |
WCB,CF8,CF8M etc. |
Disc materials |
WCB,CF8,CF8M etc. |
Disc treatment |
Chrome plated or Stellited |
Rangeability |
60°Opening/25:1,90°Opening/50:1 |
Flow characteristics |
Approximate EQ%(Inherent Characteristic) |
Seal ring materials |
SS+Graphite SS+PTFE |
Leakage |
ANSI ClassⅣ~Ⅵ |
Actuator |
PX00RA、PA00RA Pneumatic Cylinder Actuator |
|
EK00RA、EQ00RA Solid State Electronic Actuator |
|
