YD5000 Plug Valves Series

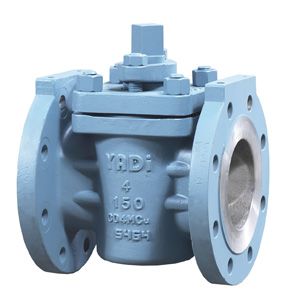

YD500P High Performance Plug Valves


    Location >> Home >> Product Center >> YD5000 Plug Valves Series >> YD500P High Performance Plug Valves >> YD500P High Performance Plug Valves

 download

YD500P series has the merits of zero dead space, zero maintenance, zero leakage, etc. It has control and shut-off characteristics. It is special suitable to control fluids with fiber and/or slurry.

Specifications:

  Body type   YD500P
  Body size   1/2"~18"(15A~450A)
  Body rating   ANSI Class150~900#
  Fluid temp.   -20~+150℃
  Connections   Flanged(RF,RTJ)
  Body materials   WCB, CF8, CF8M,CD4MCU,CF3M,etc.
  Body materials   PTFE
  Seat materials   CF8/ Stellite、304SS/ Stellite、CF8M/ Stellite、316SS/ Stellite,etc.
  Leakage   Zero Leakage
  Actuator   PX00RA、PA00RA Pneumatic Cylinder Actuator
  EK00RA、EQ00RA Solid State Electronic Actuator
