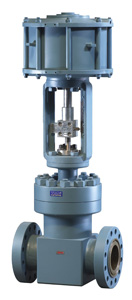

YD400G YD401G series has own design/construction to realize very good and firm metal-to-metal touch sealing performance, makes it suitable to a variety of severe services, including emergency shut-off/opening at extremely low to high temperature.

Specifications:

  Body type   YD400G YD401G
  Body size   1"~24"(25A~600A)
  Body rating   ANSI Class150~2500,PN1.0 MPa~PN42MPa
  Fluid temp.   -196~+550℃
  Connections   Flange(RF, MFM,RJ),Butt Weld,Socket Weld
  Body materials   WCB、CF8、CF8M,etc.
  Disc materials   CF8/ Stellite、304SS/ Stellite、CF8M/ Stellite、316SS/ Stellite,etc.
  Seat materials   CF8/ Stellite、304SS/ Stellite、CF8M/ Stellite、316SS/ Stellite,etc.
  Leakage   Tight shut off
  Actuator   DY00LA Pneumatic Diaphragm Actuator
  PY00LA Pneumatic Cylinder Actuator
  ES00LA Solid State Electronic Actuator
