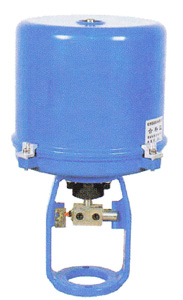

| Linear Electric Actuators |
|
|
|
|
|
| Location
>> Home >> Product Center >> Linear Electric Actuators >> EK00LA >> EK00LA |
  download
Specifications:
| Type |
EK01LA
|
EK02LA
|
EK03LA
|
EK05LA
|
EK06LA
|
EK10LA
|
EK10LA
|
EK16LA
|
EK25LA
|
| Max. output(N.m) |
1000
|
2000
|
3000
|
5000
|
6500
|
10000
|
10000
|
16000
|
25000
|
| Power source |
AC220V 50/60HZ，AC380V 50/60HZ |
| Max. stroke |
30mm
|
60mm
|
100mm
|
| Control signal |
DC 4~20mA,ON-OFF |
| Environment temp. |
-35~60℃ |
| Enclosure type |
water-proof, Explosion Proof |
| Options |
Additional position switch, Position transmitter, Torque switch, Limit switch |
|
|
|
