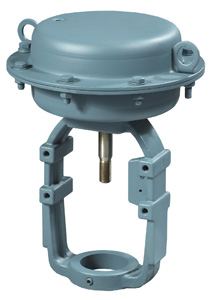

This series provides high performance, high power diaphragm actuator of multi-spring type that is with compact and light. Its operating principle: Receiving pneumatic or electric signals, the unit balances the force created when diaphragm is air pressured though positioned and the force of compressed spring, so that the output shaft is controlled and placed at a set position.
Specifications:
| Type |
DY22LA
|
DY28LA
|
DY36LA
|
DY45LA
|
|
DY4ALA
|
DY4BLA
|
| Actuator size |
220
|
270
|
365
|
450
|
| Max. output N |
2200
|
3650
|
4500
|
7500
|
| Air supply Kpa |
140300 |
| Spring rang Kpa |
|
|
80-200
|
| Max. stroke |
20mm
|
30mm
|
40mm
|
40mm
|
80mm
|
| Action |
Direct Action or Reverse Action |
| Environment temp. |
Standard type: -20~+60℃,Low Temp. service:-50~+60℃,High Temp. service: 0~+100℃ |
| Options |
Manual handle, Limit SW, Positioner, Air-set etc. |
|
|
|
