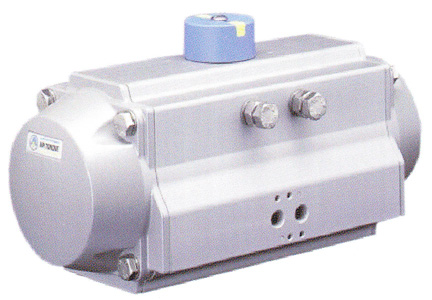

    Location >> Home >> Product Center >> Pneumatic Cylinder Actuators >> PA00RA >> PA00RA

 download

Output Shaft Rotating Angle:90°or 60°

Specifications:

PA00RA Double Action type
Type code
PA10RA
PA20RA
PA25RA
PA30RA
PA35RA
PA40RA
PA45RA
PA50RA
PA55RA
PA60RA
PA65RA
PA70RA
PA80RA
Model
AT10
AT20
AT25
AT30
AT35
AT40
AT45
AT50
AT55
AT60
AT65
AT70
AT80
Output N.m at 400KPa
23.5
46.5
73.2
106
172
222
348
454
613
851
1430
2075
3604
PA00RA
Spring Return type
Type code
PA10RA
PA20RA
PA25RA
PA30RA
PA35RA
PA40RA
PA45RA
PA50RA
PA55RA
PA60RA
PA65RA
PA70RA
PA80RA
Model
AT10
AT20
AT25
AT30
AT35
AT40
AT45
AT50
AT55
AT60
AT65
AT70
AT80
Output N.m at 400KPa
10
18.8
27
43.3
67.1
89.7
142
188
234
347
596
1202
1623
Air supply Double Acting type:400~600KPa Spring Return type:400~600KPa G
Action Direct Action or Reverse Action
Environment temp. Standard type: -20~+80℃,Low Temp. service:-40~+80℃,High Temp. service: -15~+150℃
Options Manual handle, Limit Switch, Positioner, Air-set, Speed controller, Lock Valve, Solenoid Valve etc.
