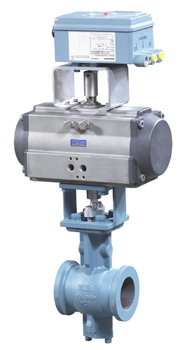

YD200E series eccentric ball valve is eccentric segmental ball valve for modulating application. Comparing to globe valve, body is compact, light weight, and yet it has large Cv value, large rangeability, and can be convertible to reduce bore type(60%,40%reduced) only by changing seal ring.
Specifications:
| Body type |
YD200E |
| Body size |
1"~12" (25A~300A) |
| Body rating |
ANSI Class150~600，PN1.0 MPa ~PN10 MPa |
| Fluid temp. |
-45~+450℃ |
| Connections |
Wafer type |
| Body materials |
WCB、CF8、CF8M，etc. |
| Trim materials |
CF8、CF8M，etc. |
| Disc treatment |
Chrome plated or Stellited |
| Rangeability |
100：1 |
| Flow characteristics |
Appr. Linear、ON-OFF |
| Leakage |
Metal seat：ANSI Class Ⅳ |
|
Soft seat ：ANSI Class Ⅵ |
| Actuator |
PX00RA、PA00RA Pneumatic Cylinder Actuator |
|
EK00RA、EQ00RA Solid State Electronic Actuator |
|
